Stator Stack Gauging

Accurate high volume in-line dimensional inspection of stator stacks matching stamping press speeds

ZeroTouch delivers comprehensive stator inspection in line with stamping press operations. Real-time process feedback eliminates bottlenecks caused by offline CMMs and Inspection labs. Automated systems replace custom gauges and save factory floorspace while offering the flexibility to measure multiple part types on one machine.

Typically Measured Features

  • Linear dimensions
  • Diameters
  • Perpendicularity
  • Flatness
  • Runout
  • Coaxiality
  • Concentricity
  • Cylindricity
  • Angles
  • Defect detection of dents and delaminated stacks

    Benefits

    • Dimensional reports
    • Visual representation of physical part deviation
    • Fast cycle times
    • Reduced floor space
    • Automation ready
    • Real-time process feedback
    • Full Industry 4.0 integration for results and process trends
        • PLC
        • MES
        • Web reporting

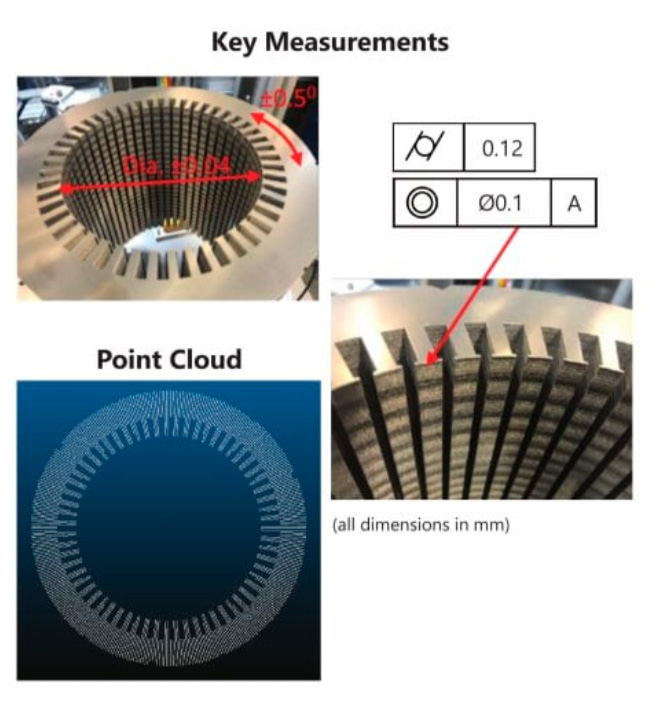

      stator_gdampt

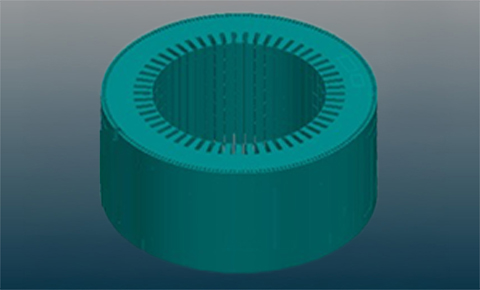

      cad_model_stator

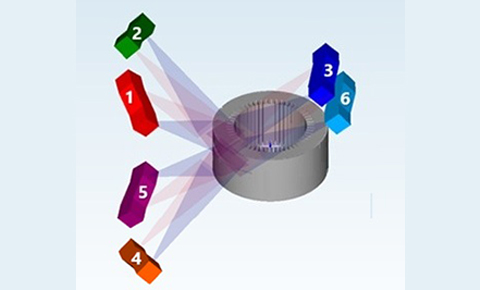

      layout_laser_stator

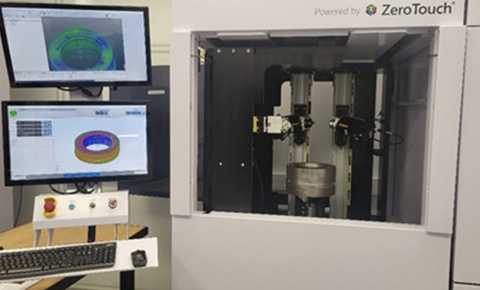

      zerotouch_stator

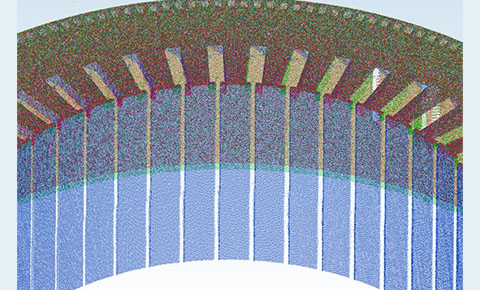

      stator_point_cloud

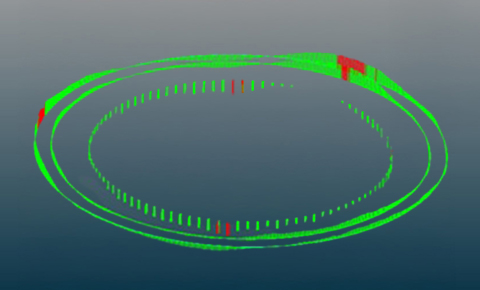

      stator_flatness

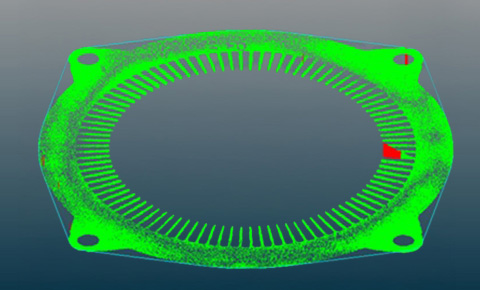

      stator_bent

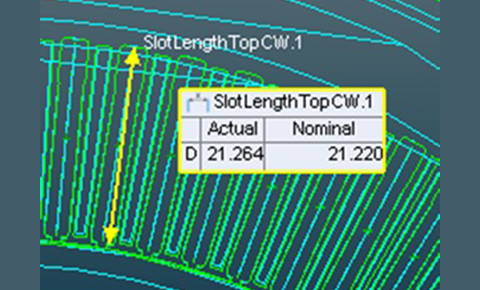

      stator_slots

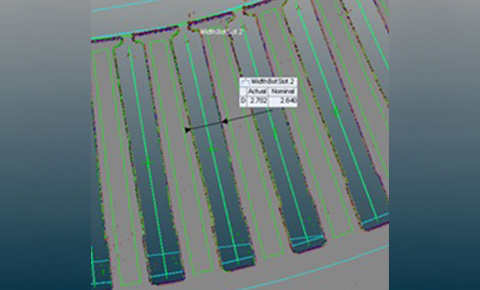

      stator-angles

      ZeroTouch Benefits

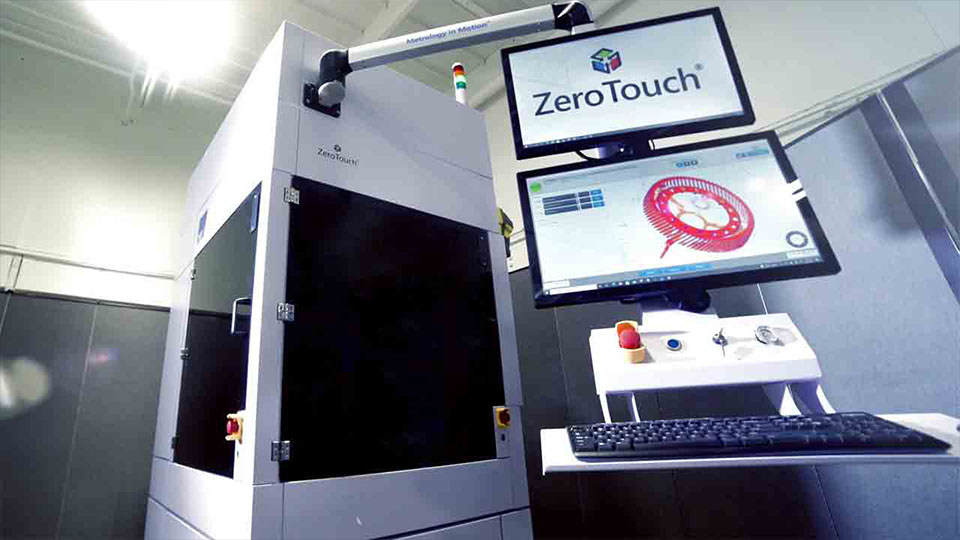

      Advanced Solutions for automotive e mobility

      In-line inspection Automation Ready

      Replace the need for multiple, slow coordinate measurement machines with in-line inspection with the ability to automate loading and completely couple to the manufacturing process. Universal nest design concept allows for different part variations to be inspected on the same assembly line.

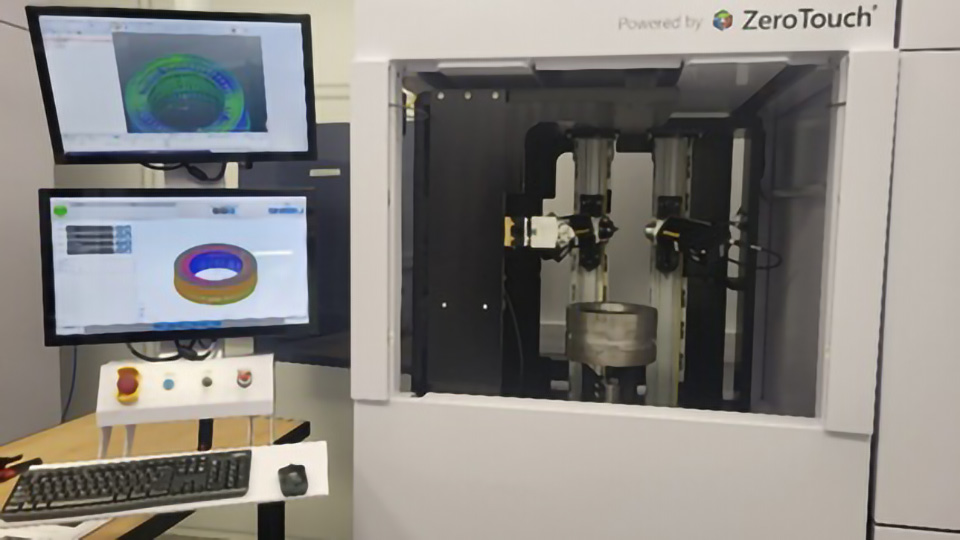

      zerotouch_stator

      Non-contact inspection at the speed of light

      The ZeroTouch® delivers fast inspection cycles with comprehensive part evaluation. Laser capture required features and definitive pass fail and be confirmed in cycle with results communicated to PLC or MES systems.

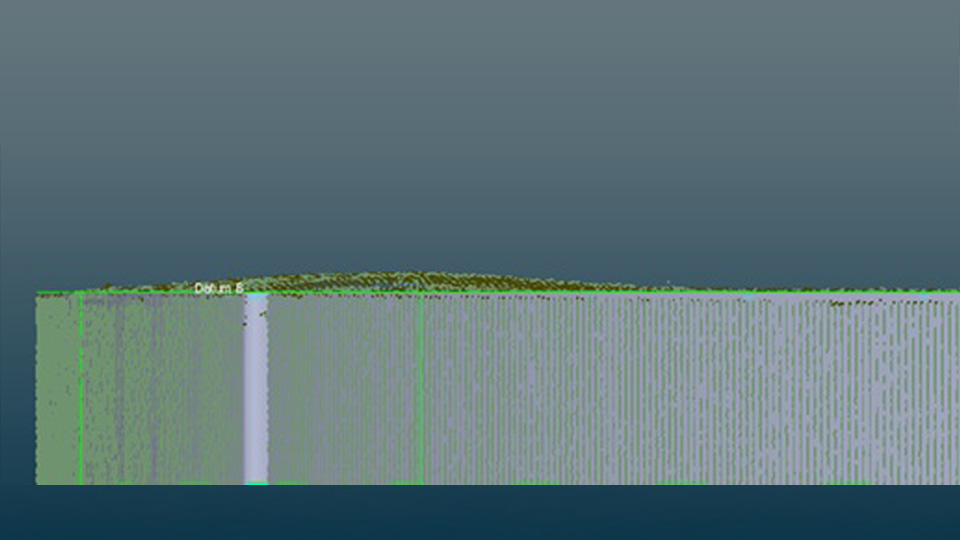

      stator_dent

      Comprehensive part analysis and process monitoring

      Utilize the digital twin point cloud captured to perform what-if analysis of features not previously analyzed to support engineering investigations and quality improvement projects.
