Aerospace Aerofoil Blade Inspection

Measure at the speed of light

ZeroTouch® enables leading aerospace manufacturers to comprehensively measure, digitize, and evaluate their high-precision components with quick cycle times on the floor or even automated in-line. Measure everything on the part print with exacting accuracy in a non-contact manner without the risk of introducing FOD (foreign object debris). Free from the need to physically probe the part, the workpiece can be fully covered with laser data for dimensional, GD&T, and visualization of a color map of physical part deviation from nominal.

Key Applications

  • Turbine and compressor blades
  • Vanes
  • Nozzles
  • Shrouds
  • Impellers
  • Diffusers
  • Blisks
  • Landing gear components
  • Fuel manifolds

Specialized Evaluations

  • Guillotine gage analysis
  • Inscribed circle plot
  • Leading edge plot

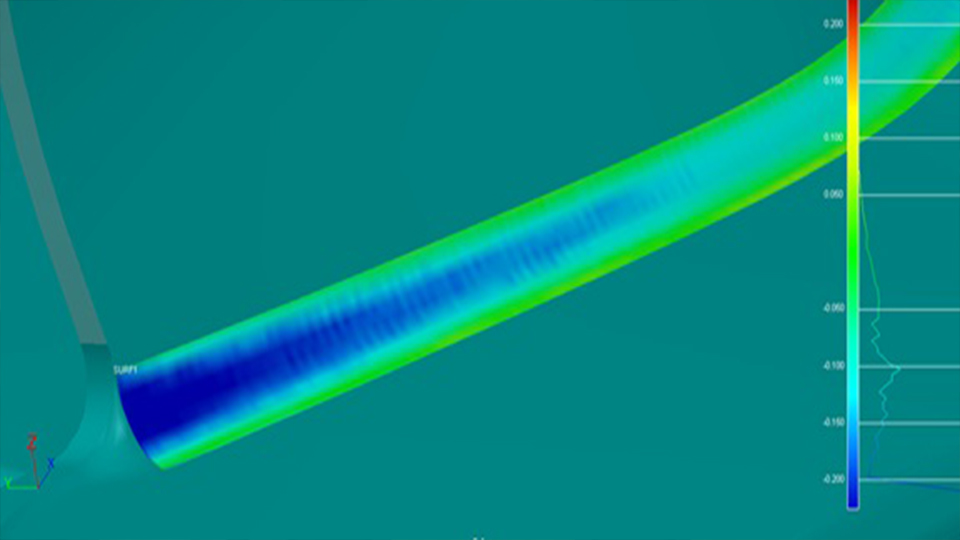

  • Color Map
  • Blade Chord
  • Platform
  • Platform to blade transition
  • Mean Camber Line
  • Root evaluation

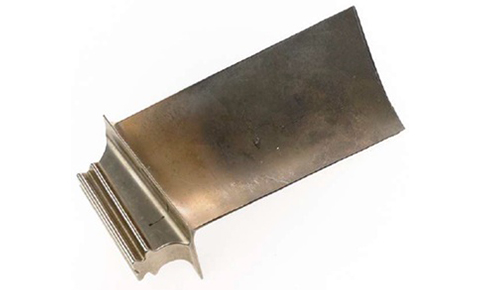

aerospace-blade-sample

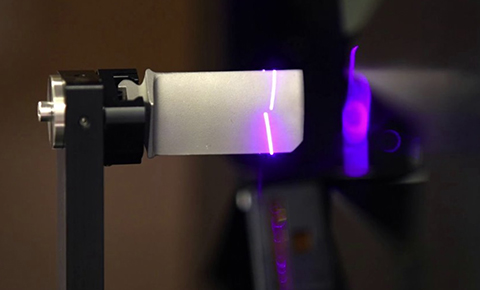

aerospace-laser-scanned-blade

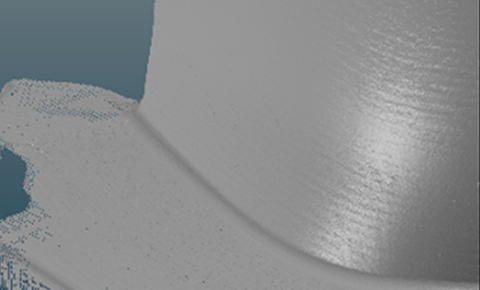

aerospace-detailed-point-cloud
aerospace-comprehensive-blade-analysis

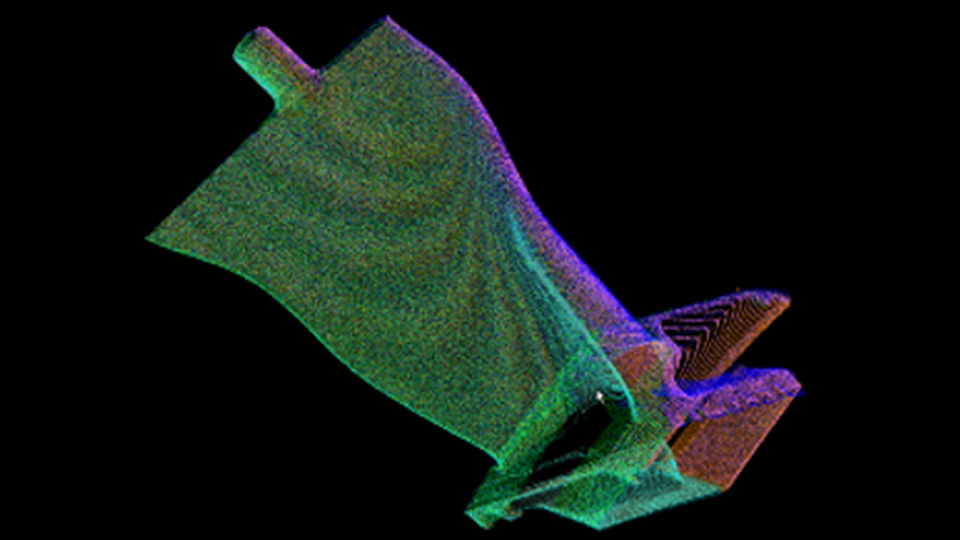

aerospace-blade-scanned

Measure at the Speed of Light

Laser scan data with high-end optics enables measurement times as low as 12 seconds, combined with instant evaluation of the inspection program, means more parts measured and the elimination of the logistical challenges of walking to the CMM lab. Save floor space for the manufacturing process and keep skilled labor working directly on value-added tasks.

Advanced Solutions for Aerospace

Comprehensive Gauging and Metrology Evaluation

A comprehensive point cloud data set combined with comprehensive metrology evaluation software takes traditional gauging processes to the next level. A full digital twin comprising millions of datapoints can be evaluated for future tolerances and measurements. Ensure high-quality production today supports quality design of experiment studies and data mining tomorrow, and enables selective recalls when new issues require a different process to protect the customer.

Advanced Solutions for Aerospace

In-Process Inspection, Real-time Process Monitoring

While confirming parts produced are to print, full process monitoring enables optimizing tool life, better-planning downtime, and corrective action when production trends in the wrong direction. Full-fidelity digital twin with high-level inspection reporting is in the hands of the entire production team, from integration into a MES system, email alerts, or colors, to inspection reports on the engineer’s desktop web browsers and cell phone email box.
